conduit::EventEnvelope Class Reference

Polymorphic envelope cell. More...

#include <envelope.hpp>

Inheritance diagram for conduit::EventEnvelope:

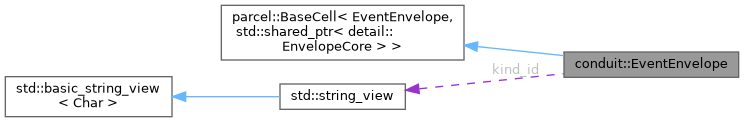

Collaboration diagram for conduit::EventEnvelope:

Public Member Functions
	EventEnvelope ()
template<typename T > requires std::derived_from<T, parcel::ICell>
	EventEnvelope (T payload)
	Build an envelope around a typed payload event.
	EventEnvelope (detail::EnvelopeCore core, parcel::cell_t payload)
	EventEnvelope (std::shared_ptr< detail::EnvelopeCore > core)
const ulid::Ulid &	id () const noexcept
std::string_view	name () const noexcept
const flags::FlagSet &	flags () const noexcept
const Metadata &	metadata () const noexcept
const Timestamps &	timestamps () const noexcept
const std::optional< ulid::Ulid > &	correlation_id () const noexcept
const std::optional< ulid::Ulid > &	causation_id () const noexcept
const parcel::cell_t &	payload_cell () const noexcept
template<typename T >
std::shared_ptr< const T >	payload_as () const noexcept
	Typed payload accessor: returns shared_ptr<const T> if the underlying payload is a T cell, or nullptr otherwise.
Timestamps &	timestamps () noexcept
Metadata &	metadata () noexcept
flags::FlagSet &	flags () noexcept
std::shared_ptr< detail::EnvelopeCore >	core_ptr () const noexcept
bool	valid () const noexcept
std::string	to_string () const override
parcel::json_t	to_json () const override
std::partial_ordering	compare (parcel::ICell const &other) const override

Static Public Member Functions
static parcel::cell_t	from_json (parcel::json_t const &j, parcel::ParcelRegistry const &reg)
static parcel::cell_type_descriptor_t	descriptor ()

Static Public Attributes
static constexpr std::string_view	kind_id = "conduit:envelope"

Detailed Description

Polymorphic envelope cell.

Holds bookkeeping (id, flags, metadata, timestamps, correlation/causation ids) plus a parcel::cell_t payload — so any registered event cell can ride inside the same envelope kind.

Storage is a shared_ptr<detail::EnvelopeCore> so copies share the same mutable core: transports that adjust timestamps()/metadata() on a local copy update the originating envelope as well.

Constructor & Destructor Documentation

EventEnvelope() [1/4]

conduit::EventEnvelope::EventEnvelope ( )

inline

EventEnvelope() [2/4]

template<typename T >
requires std::derived_from<T, parcel::ICell>

conduit::EventEnvelope::EventEnvelope ( T  payload )

inlineexplicit

Build an envelope around a typed payload event.

T must derive from conduit::Event<T, Name> (i.e. be an ICell-derived cell).

EventEnvelope() [3/4]

conduit::EventEnvelope::EventEnvelope ( detail::EnvelopeCore  core, parcel::cell_t  payload  )

inline

EventEnvelope() [4/4]

conduit::EventEnvelope::EventEnvelope ( std::shared_ptr< detail::EnvelopeCore >  core )

inlineexplicit

Member Function Documentation

causation_id()

const std::optional< ulid::Ulid > & conduit::EventEnvelope::causation_id ( ) const

inlinenoexcept

compare()

std::partial_ordering conduit::EventEnvelope::compare ( parcel::ICell const &  other ) const

inlineoverride

core_ptr()

std::shared_ptr< detail::EnvelopeCore > conduit::EventEnvelope::core_ptr ( ) const

inlinenoexcept

correlation_id()

const std::optional< ulid::Ulid > & conduit::EventEnvelope::correlation_id ( ) const

inlinenoexcept

descriptor()

static parcel::cell_type_descriptor_t conduit::EventEnvelope::descriptor ( )

inlinestatic

flags() [1/2]

const flags::FlagSet & conduit::EventEnvelope::flags ( ) const

inlinenoexcept

flags() [2/2]

flags::FlagSet & conduit::EventEnvelope::flags ( )

inlinenoexcept

from_json()

parcel::cell_t conduit::EventEnvelope::from_json ( parcel::json_t const &  j, parcel::ParcelRegistry const &  reg  )

inlinestatic

id()

const ulid::Ulid & conduit::EventEnvelope::id ( ) const

inlinenoexcept

metadata() [1/2]

const Metadata & conduit::EventEnvelope::metadata ( ) const

inlinenoexcept

metadata() [2/2]

Metadata & conduit::EventEnvelope::metadata ( )

inlinenoexcept

name()

std::string_view conduit::EventEnvelope::name ( ) const

inlinenoexcept

payload_as()

template<typename T >

std::shared_ptr< const T > conduit::EventEnvelope::payload_as ( ) const

inlinenoexcept

Typed payload accessor: returns shared_ptr<const T> if the underlying payload is a T cell, or nullptr otherwise.

payload_cell()

const parcel::cell_t & conduit::EventEnvelope::payload_cell ( ) const

inlinenoexcept

timestamps() [1/2]

const Timestamps & conduit::EventEnvelope::timestamps ( ) const

inlinenoexcept

timestamps() [2/2]

Timestamps & conduit::EventEnvelope::timestamps ( )

inlinenoexcept

to_json()

parcel::json_t conduit::EventEnvelope::to_json ( ) const

inlineoverride

to_string()

std::string conduit::EventEnvelope::to_string ( ) const

inlineoverride

valid()

bool conduit::EventEnvelope::valid ( ) const

inlinenoexcept

Member Data Documentation

kind_id

constexpr std::string_view conduit::EventEnvelope::kind_id = "conduit:envelope"

staticconstexpr

---

The documentation for this class was generated from the following file:

• include/conduit/envelope.hpp
