Macros that expand into a CRTP unit/measure struct and a runtime auto-registration for it. More...

#include <dimval/base.hpp>
#include <dimval/measure.hpp>
#include <dimval/registry.hpp>
#include <dimval/unit.hpp>
#include <commons/color.hpp>
#include <commons/icon.hpp>
#include <commons/icons.hpp>
#include <optional>

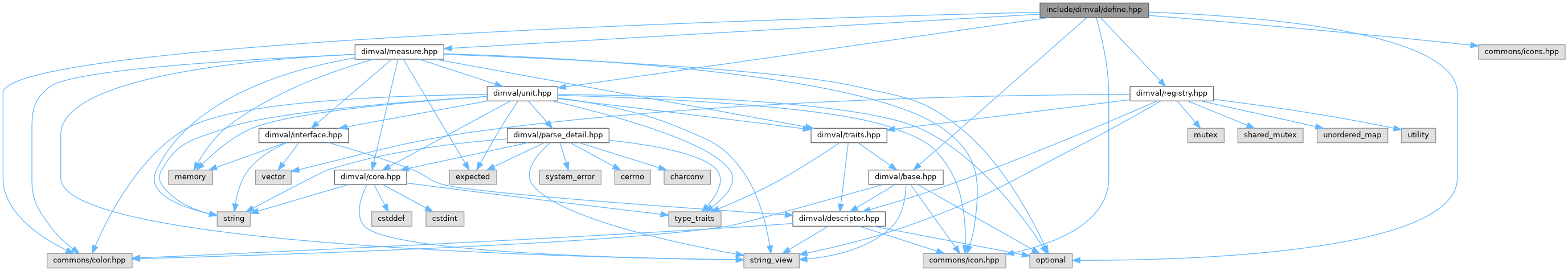

Include dependency graph for define.hpp:

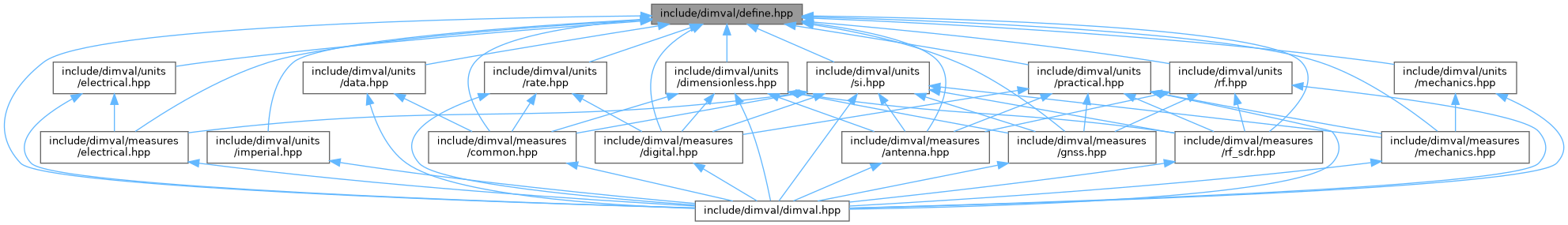

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DIMVAL_DEFINE_UNIT(Tag, Id, Symbol, ShortName, LongName, Kind, Factor, Icon, Color, ...)
	Define a unit struct in ::dimval and auto-register its descriptor at static-init time.

#define	DIMVAL_DEFINE_MEASURE(Tag, BaseUnit, Id, Name, Icon, Color, ...)
	Define a measure struct in ::dimval and auto-register its descriptor.

Detailed Description

Macros that expand into a CRTP unit/measure struct and a runtime auto-registration for it.

Each unit/measure is its own struct that derives from UnitBase / MeasureBase and publishes its metadata as static constexpr members. The macro arguments fill in those members; optional fields fall through to the defaults declared on UnitBase / MeasureBase unless overridden via VA_ARGS.

The Icon argument is a comms::Icon — prefer a catalog constant such as comms::Icons::mdi::movie_roll (from <commons/icons.hpp>), or build one from any Iconify set with the compile-time validated comms::Icon::from("set:name"). The Color argument is a comms::Color — use a Material UI shade such as comms::Colors::mui::blue[400]. Passing ::std::nullopt for either means "unset / inherit".

Usage from outside the library (custom user units):

#include <dimval/dimval.hpp>

DIMVAL_DEFINE_UNIT(Frame, "frame", "frm", "frm", "frame", "count", 1.0,
                   ::comms::Icons::mdi::movie_roll,
                   ::comms::Colors::mui::blue[400])

DIMVAL_DEFINE_MEASURE(FrameCount, ::dimval::Frame,
                      "frame_count", "Frame count",
                      ::comms::Icons::mdi::movie_roll,
                      ::comms::Colors::mui::blue[400])

Optional fields (offset, formatter, default_precision, no_space_before_symbol) can be supplied as additional macro arguments after the required ones — each one is a static constexpr member declaration that shadows the inherited default:

DIMVAL_DEFINE_UNIT(Celsius, "degC", "°C", "°C", "degree Celsius",
                   "temperature", 1.0,
                   ::comms::Icons::mdi::thermometer_lines,
                   ::comms::Colors::mui::orange[400],
                   static constexpr double offset = 273.15;
                   static constexpr int default_precision = 1;)

All macros open namespace dimval internally. The structs they produce therefore live in ::dimval.

Macro Definition Documentation

◆ DIMVAL_DEFINE_MEASURE

#define DIMVAL_DEFINE_MEASURE	(	Tag,
		BaseUnit,
		Id,
		Name,
		Icon,
		Color,
		...
	)

Value:

    namespace dimval {                                                                             \
    struct Tag : ::dimval::MeasureBase<Tag, BaseUnit> {                                            \
        static constexpr ::std::string_view id = Id;                                               \
        static constexpr ::std::string_view name = Name;                                           \
        static constexpr ::dimval::detail::icon_field_t icon = Icon;                               \
        static constexpr ::dimval::detail::color_field_t color = Color;                            \
        __VA_ARGS__                                                                                \
    };                                                                                             \
    using DIMVAL_DETAIL_CAT(Tag, Value) = ::dimval::MeasureValue<Tag>;                             \
    using DIMVAL_DETAIL_CAT(Tag, ValueUnique) = ::std::unique_ptr<DIMVAL_DETAIL_CAT(Tag, Value)>;  \
    using DIMVAL_DETAIL_CAT(Tag, ValueShared) = ::std::shared_ptr<DIMVAL_DETAIL_CAT(Tag, Value)>;  \
    using DIMVAL_DETAIL_CAT(Tag, RangeValue) = ::dimval::MeasureRangeValue<Tag>;                   \
    }                                                                                              \
    namespace dimval::detail {                                                                     \
    [[maybe_unused]] inline const int DIMVAL_DETAIL_CAT(_dimval_measure_reg_, Tag) =               \
        ::dimval::detail::register_measure_tag<::dimval::Tag>();                                   \
    }

Define a measure struct in ::dimval and auto-register its descriptor.

BaseUnit is the underlying unit type (must be UnitLike). Icon (a comms::Icon) and Color (a comms::Color) shadow the unit's defaults; pass ::std::nullopt to inherit from the base unit. __VA_ARGS__ is an optional list of static constexpr member declarations that shadow the defaults declared on MeasureBase (e.g. default_precision, formatter).

◆ DIMVAL_DEFINE_UNIT

#define DIMVAL_DEFINE_UNIT	(	Tag,
		Id,
		Symbol,
		ShortName,
		LongName,
		Kind,
		Factor,
		Icon,
		Color,
		...
	)

Value:

    namespace dimval {                                                                             \
    struct Tag : ::dimval::UnitBase<Tag> {                                                         \
        static constexpr ::std::string_view id = Id;                                               \
        static constexpr ::std::string_view symbol = Symbol;                                       \
        static constexpr ::std::string_view short_name = ShortName;                                \
        static constexpr ::std::string_view long_name = LongName;                                  \
        static constexpr ::std::string_view kind = Kind;                                           \
        static constexpr double factor = Factor;                                                   \
        static constexpr ::dimval::detail::icon_field_t icon = Icon;                               \
        static constexpr ::dimval::detail::color_field_t color = Color;                            \
        __VA_ARGS__                                                                                \
    };                                                                                             \
    using DIMVAL_DETAIL_CAT(Tag, Value) = ::dimval::UnitValue<Tag>;                                \
    using DIMVAL_DETAIL_CAT(Tag, ValueUnique) = ::std::unique_ptr<DIMVAL_DETAIL_CAT(Tag, Value)>;  \
    using DIMVAL_DETAIL_CAT(Tag, ValueShared) = ::std::shared_ptr<DIMVAL_DETAIL_CAT(Tag, Value)>;  \
    using DIMVAL_DETAIL_CAT(Tag, RangeValue) = ::dimval::UnitRangeValue<Tag>;                      \
    }                                                                                              \
    namespace dimval::detail {                                                                     \
    [[maybe_unused]] inline const int DIMVAL_DETAIL_CAT(_dimval_unit_reg_, Tag) =                  \
        ::dimval::detail::register_unit_tag<::dimval::Tag>();                                      \
    }

Define a unit struct in ::dimval and auto-register its descriptor at static-init time.

Tag is the unqualified identifier (also used to name the auto-registrar). Id, Symbol, ShortName, LongName, Kind are string literals; Factor is a double; Icon is a comms::Icon (e.g. a ::comms::Icons::mdi::* catalog constant) and Color is a comms::Color (e.g. ::comms::Colors::mui::blue[400]) — pass ::std::nullopt to leave unset. __VA_ARGS__ is an optional list of static constexpr member declarations that shadow the defaults declared on UnitBase.
