esphome::api::DiscoveredDevice Struct Reference

An ESPHome device found on the local network. More...

#include <discovery.hpp>

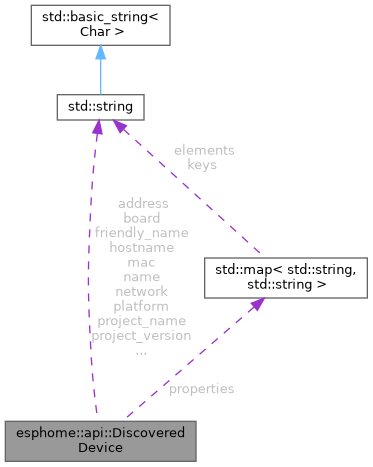

Collaboration diagram for esphome::api::DiscoveredDevice:

Public Member Functions
std::string	connect_host () const
	Best host to connect to: the resolved IP if known, else the hostname.

Public Attributes
std::string	name
	Service instance name (the device's friendly/host name).
std::string	hostname
	SRV target host, e.g. "living-room.local".
std::string	address
	Resolved IP address (from the A/AAAA record); empty if not provided.
std::uint16_t	port = 6053
	API TCP port (default 6053).
std::string	mac
std::string	version
std::string	friendly_name
std::string	platform
std::string	board
std::string	network
std::string	project_name
std::string	project_version
bool	requires_encryption = false
	True when the device advertises that Noise encryption is required (TXT api_encryption).
bool	supports_encryption = false
std::map< std::string, std::string >	properties
	Every TXT record, as key → value.

Detailed Description

An ESPHome device found on the local network.

Member Function Documentation

connect_host()

std::string esphome::api::DiscoveredDevice::connect_host ( ) const

inline

Best host to connect to: the resolved IP if known, else the hostname.

Member Data Documentation

address

std::string esphome::api::DiscoveredDevice::address

Resolved IP address (from the A/AAAA record); empty if not provided.

board

std::string esphome::api::DiscoveredDevice::board

friendly_name

std::string esphome::api::DiscoveredDevice::friendly_name

hostname

std::string esphome::api::DiscoveredDevice::hostname

SRV target host, e.g. "living-room.local".

mac

std::string esphome::api::DiscoveredDevice::mac

name

std::string esphome::api::DiscoveredDevice::name

Service instance name (the device's friendly/host name).

network

std::string esphome::api::DiscoveredDevice::network

platform

std::string esphome::api::DiscoveredDevice::platform

port

std::uint16_t esphome::api::DiscoveredDevice::port = 6053

API TCP port (default 6053).

project_name

std::string esphome::api::DiscoveredDevice::project_name

project_version

std::string esphome::api::DiscoveredDevice::project_version

properties

std::map<std::string, std::string> esphome::api::DiscoveredDevice::properties

Every TXT record, as key → value.

requires_encryption

bool esphome::api::DiscoveredDevice::requires_encryption = false

True when the device advertises that Noise encryption is required (TXT api_encryption).

supports_encryption is true when encryption is at least supported (TXT api_encryption or api_encryption_supported).

supports_encryption

bool esphome::api::DiscoveredDevice::supports_encryption = false

version

std::string esphome::api::DiscoveredDevice::version

---

The documentation for this struct was generated from the following file:

• include/esphome/api/discovery.hpp
