parcel::IFieldDescriptor Struct Reference

Runtime descriptor for a single struct field. More...

#include <descriptor.h>

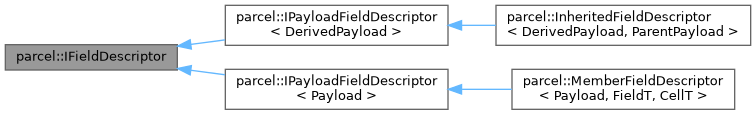

Inheritance diagram for parcel::IFieldDescriptor:

Public Member Functions
virtual std::string_view	key () const =0
	JSON key under which this field appears in "v".
virtual std::string_view	kind () const =0
	Cell kind id for the field's value type.
virtual DisplayInfo	display_info () const =0
	Display info for this field.
virtual bool	is_required () const =0
	Whether the field must be present on deserialization.
virtual json_t	to_json () const =0
	Serialize the field descriptor itself.

Detailed Description

Runtime descriptor for a single struct field.

See also

StructCell — host that aggregates field descriptors.

Member Function Documentation

to_json()

virtual json_t parcel::IFieldDescriptor::to_json ( ) const

pure virtual

Serialize the field descriptor itself.

Returns

JSON object with key, kind, display_info, required.

Implemented in parcel::MemberFieldDescriptor< Payload, FieldT, CellT >, and parcel::InheritedFieldDescriptor< DerivedPayload, ParentPayload >.

---

The documentation for this struct was generated from the following file:

• include/parcel/descriptor.h
